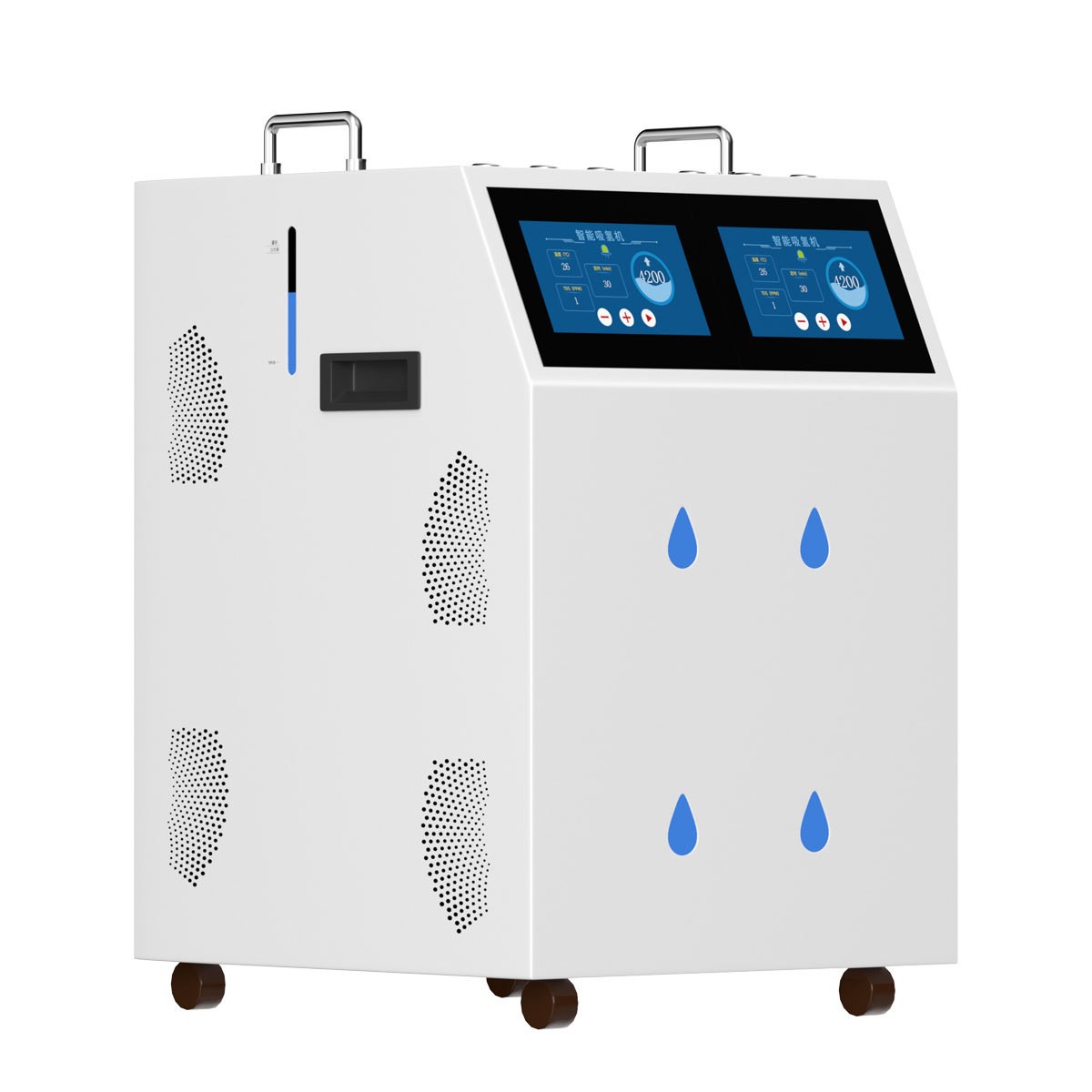

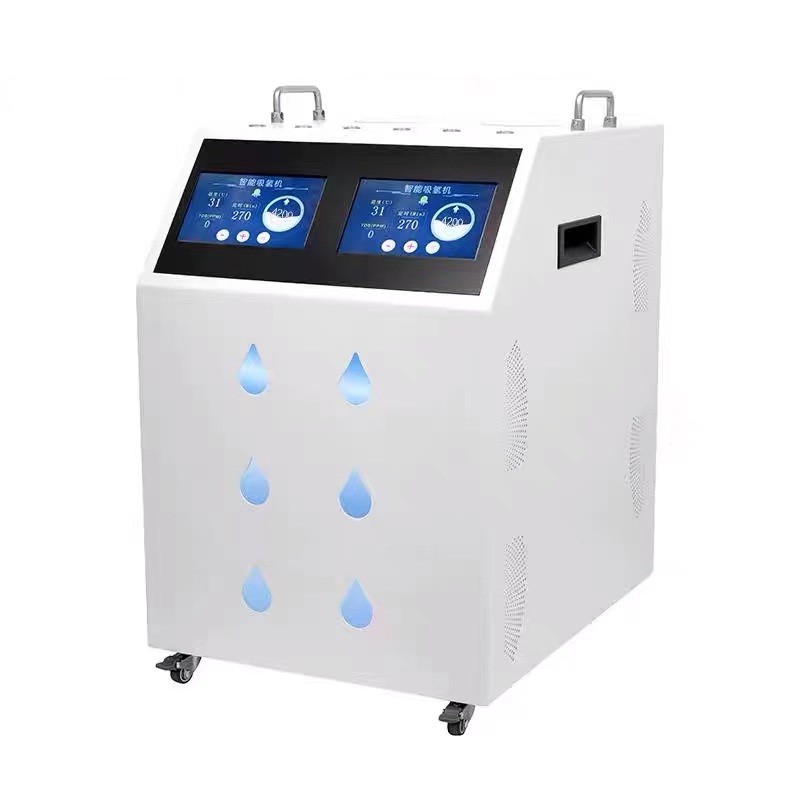

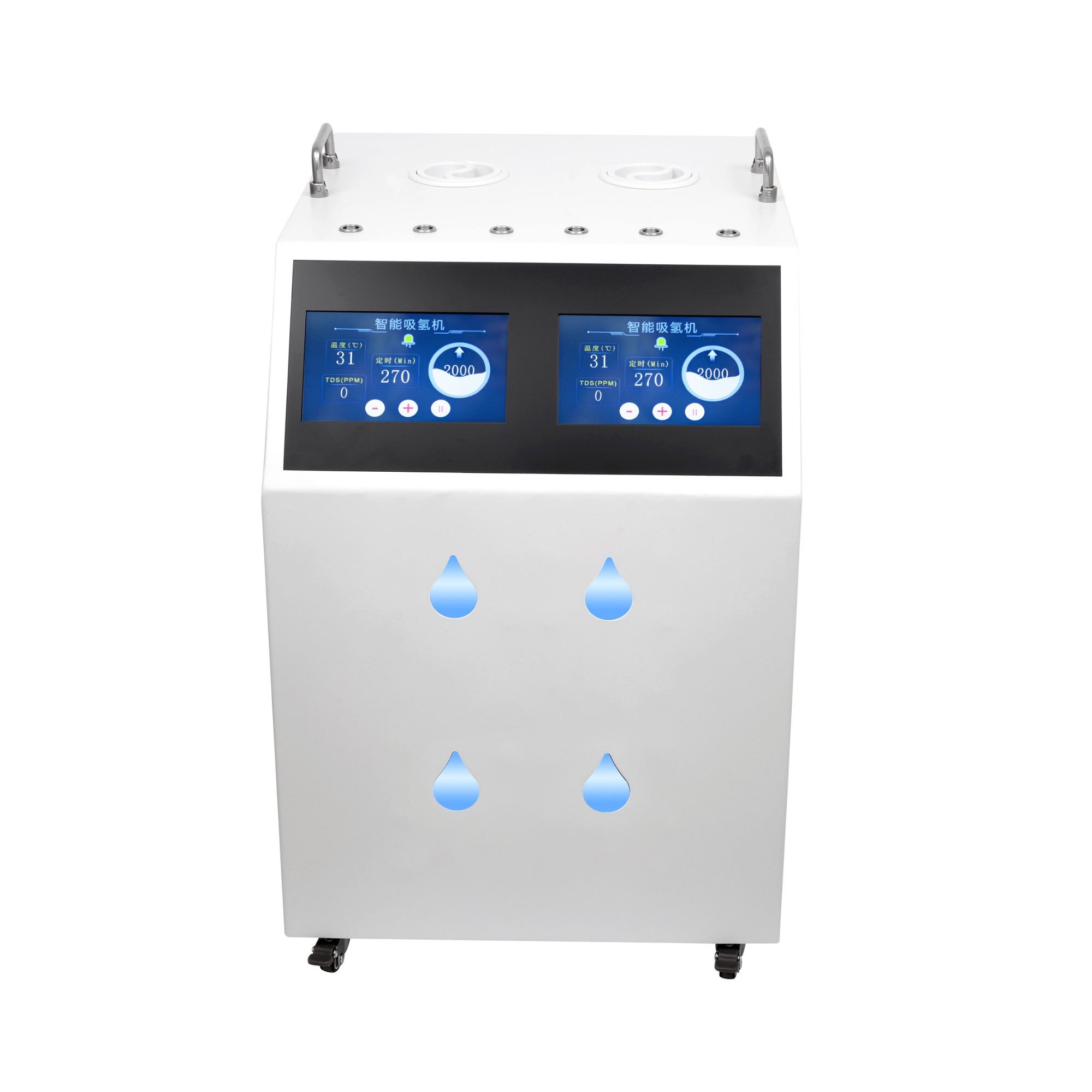

This series of intelligent hydrogen and oxygen machines is a lightweight, efficient, energy-saving and environmentally friendly high-tech patented product that electrolyzes pure water to produce high-purity hydrogen, The core SPE electrode of the machine is a highly active zero-pole distance catalytic electrode formed by integrating a composite catalyst and an ion membrane.It has high electrolysis effciency and has a complete electrical control system, The whole machine has advanced design, reliable quality, high degree of automation, high purity of hydrogen production, and wide application range.
Model specifications | 6000ml/8400ml |
Output flow (ml/min) | 3000*2=6000 4200*2=8400 |
Output pressure (MPa) | 0~0.2 |
Hydrogen purity (%) | >99.99 |
Supply voltage (V) | 110~220±15%V 50~60Hz |
Input power(w) | <2400 |
Tank volume (L) | 2 |
Reaction water consumption (g/h) | 22.5 |
Water quality requirements (Ω/cm) | Water resistivity ≥2M |
Hydrogen generator cell quantity(pc) | 4 |
Power-supply control unit(pc) | 2 |
Radiator(pc) | 2 |
2 | |
Hydrogen gas(ml/min) | 1000*4=4000 1400*4=5600 |
Oxygen gas(ml/min) | 500*4=2000 700*4=2800 |
Variable-frequency power source(pc) | 4 |
Maximum supply voltage(V) | 21V 26A |
Net weight of the whole machine (kg) | 29kg |
Overall dimensions(mm) | (L*W*H)500*400*600 |
